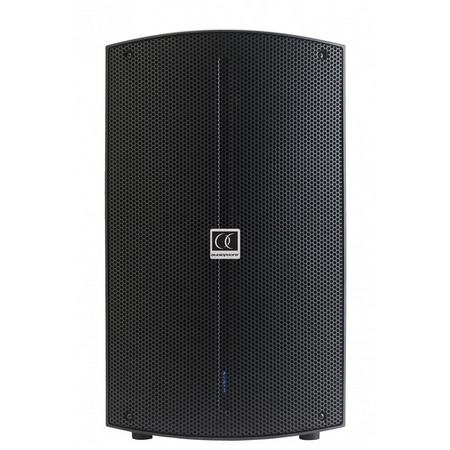

Audiophony ATOM15A

15" 400W klankkast met DSP

• Bi-amplification :
- 350W RMS Class D for LF
- 50W RMS Class AB for HF

• Total power output : 1600W dynamic / 400W RMS
• Frequency response : 45 Hz - 20 KHz
• Power supply : SMPS
• H x V Dispersion : 90° x 60°
• Filter cutoff frequency : 3.4 KHz
• Sound Pressure Level : 124 dB max.
• Woofer : 15" / 3" coil / 4 Ohms / 350W AES
• Tweeter : 1.35" compression / 8 Ohms / 50 W RMS

• Input :
- 1 COMBO XLR/JACK mic/line input
- 1 RCA and mini Jack 3.5 stereo input
• Output : 1 XLR line output

• Settings : Multiple settings DSP
• Protection : Short-circuit, thermal and limiter

• Construction and fastenings :
- 2 monitor-specific angles (45°)
- 1 top handle
- 1 side handle
- 2 M10 rigging points (on top)
- 1 insert M10 derrière
- 36mm dual positions mounting plate for a speaker stand (0° and 7,5°)

• Afmetingen : 728 x 425 x 415 mm
• Gewicht : 20.6 Kg
